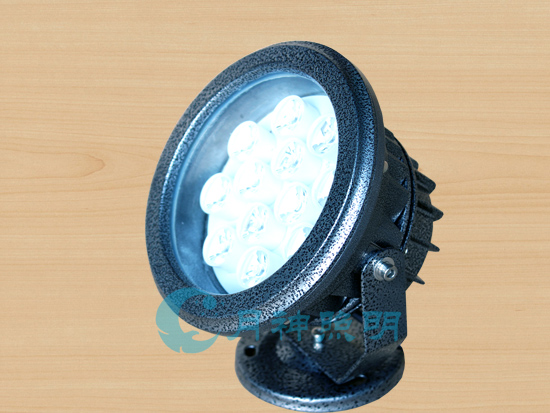

HX-SD-15 (12W lamp)

Lamp body size: diameter 160mm
Light body material: aluminum, tempered glass, stainless steel fasteners
Special features: LED lamp lamp, integrated radiator, cooling effect is good, durable, suitable for outdoor environment.
PCB material: high thermal conductivity aluminum substrate
Light source: high brightness LED
LED number: 12 (high power 1W/)
LED chip: American Bridgelux chips
Service life: more than 50 thousand hours (maintenance free)
Driving mode: built in high power factor isolated constant current drive
Power factor: 0.96
Use voltage: AC90-260V (can be customized low voltage 24V)
Power: 12W
Energy efficiency: more than 75%
Color index: 85
Flux values: 1500Lm (white)
Light emitting color: white light (can be customized with a variety of other colors)
Projection distance: 30 meters (30 degrees)
Light emitting angle: 15 degrees -60 degrees (speckle anti glare lens)
Looking up angle: adjustable
Lens material: optical PMMA
Mounting means: the installed (expansion screw fixed to the wall or the ground can be)
Protection level: IP65 (waterproof, suitable for outdoor)
Applicable temperature: - 35 C ~+60
LED lamp features: high efficiency and energy saving, high brightness, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of vibration, impact and fall, etc.. Aluminum shell, baking powder, acid and alkali resistant, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.
Application: suitable for outdoor environment, waterproof and dust. The application in building lighting, overpass, city square, sculpture park, lighting, stage lighting, advertising lighting, landscape lighting, road lighting, trees, green belt and lighting.
